Panel Cutter
Designed for cross-cutting, strip cutting, edge trimming, and cutting quilted or composite products .Suitable for use with quilting machines + fabric rolling devices, or can be used independently. servo control faster and more precise
Description

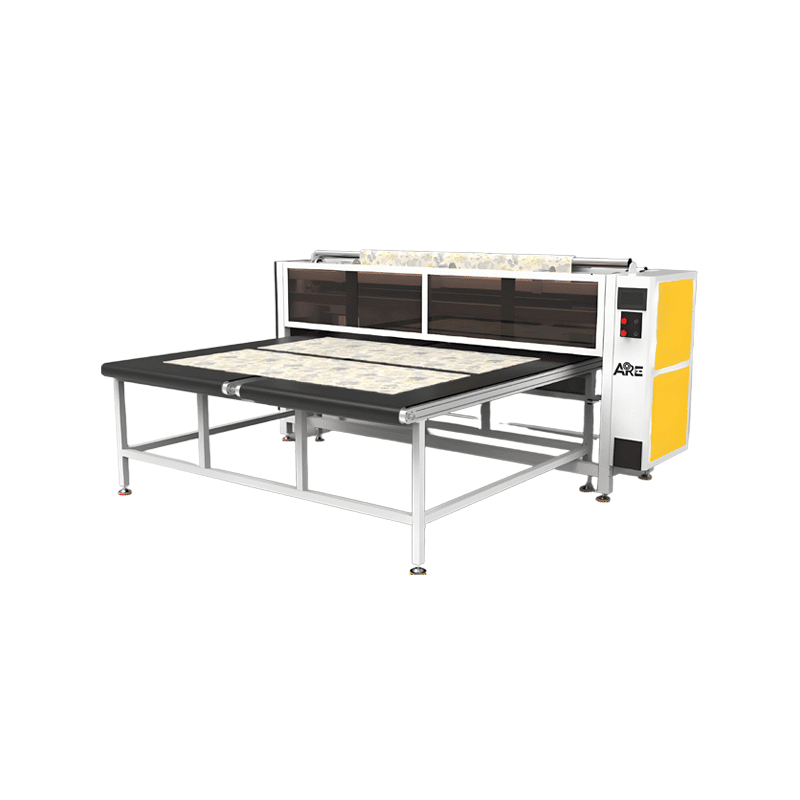

Flat Conveyor Belt Cutting Machine
Machine Features:
1. Equipped with a national standard 5-inch color touch-screen PLC human-machine interface
for user-friendly operation.
2. All components (computer materials, electrical components, motors, etc.) are CE-certified,
significantly extending the machine’s lifespan.
3. Pneumatic strip-cutting design, making the strip-cutting blade more convenient and safer to use.
4. Electric adjustment for cutting length and width, providing more user-friendly operation.
5. Added synchronized pressure rollers for even pressure and smooth feeding, ensuring smoother
strip cutting, especially for thin materials.
6. Y-direction photoelectric length measurement for more precise cutting, specifically designed for
elastic products like foam.
7.Equipped with a conveyor belt for output, facilitating stacking and saving labor.
8.Box-shaped design, optimized to improve machine speed and cutting blade quality, resulting in
higher cutting efficiency.
Applications:
Mattresses, seat covers, cushions, sofa cushions, export packaging, bedding processing, post-sewing automatic cutting, etc.
Key Features:
Designed for cross-cutting, strip cutting, edge trimming, and cutting quilted or composite products.
Suitable for use with quilting machines + fabric rolling devices, or can be used independently.
Main Technical Specifications:3200*2800
Main Unit Dimensions: MM
Cutting Width:2.4M (2.4-3.2m can be ordered)
Cutting Length: Minimum 3CM-Max
Cutting Speed: 10m/minute(Fabric rolling);Cross-cutting:5 seconds/cu
Machine Weight:1200KG
Maximum Power:2KW
Operating Voltage:380V/50HZ (3 phase, 4 wire)
